Repairing the screen of a Samsung A03S

My mom has a Samsung galaxy A03S, which she unfortunately dropped and cracked the screen. Getting it repaired would cost about 150 euros. But, of course after having successfully repaired a Mate 10 Lite screen, I decided I could also give it a shot.

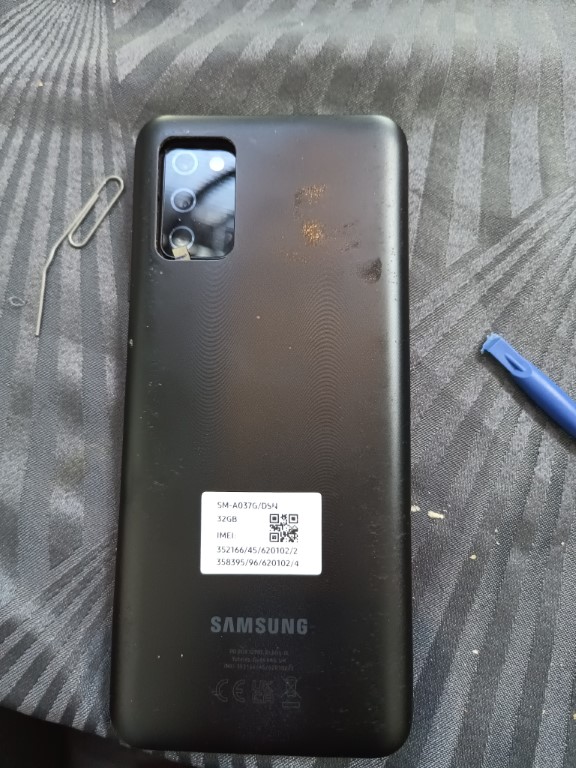

back with cover

Taking off the cover was pretty easy, you just put a spudger between the plastic cover and the phone and wiggle away. After the cover is off, I could take a look at the inside

cover off

The top cover contains 5 screws that need to be taken off, and the bottom one takes a surprising 8.

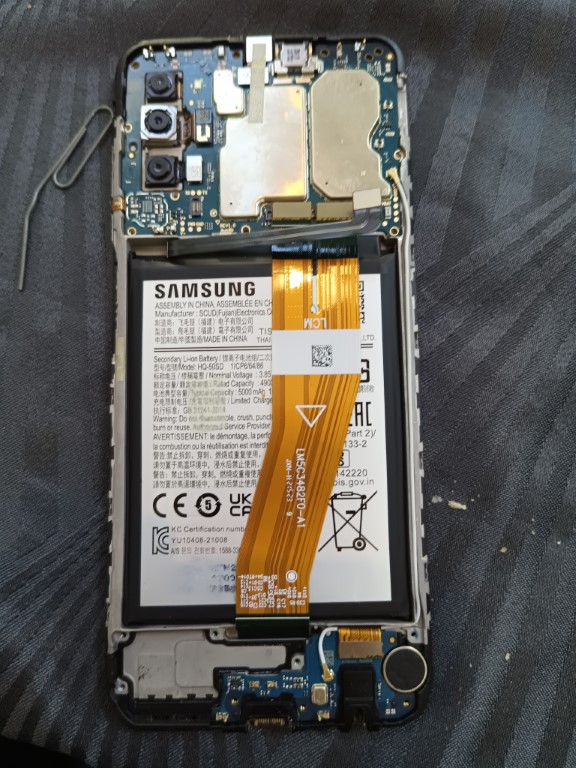

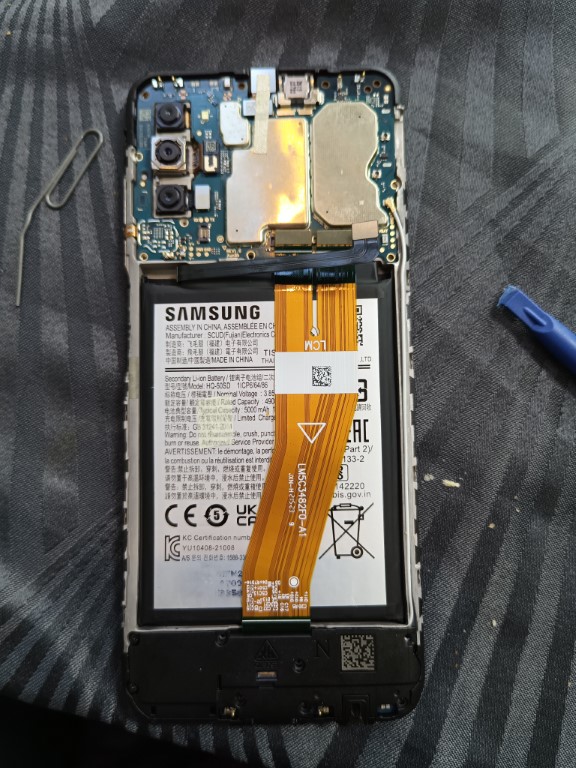

top panel off bottom cover off

After removing the covers, disconnect the cable and heat up the sillicon/glue sides to remove the screen. Be careful though, because mine cracked some more while removing it. After removing the screen I removed some of the extra glue on the sides.

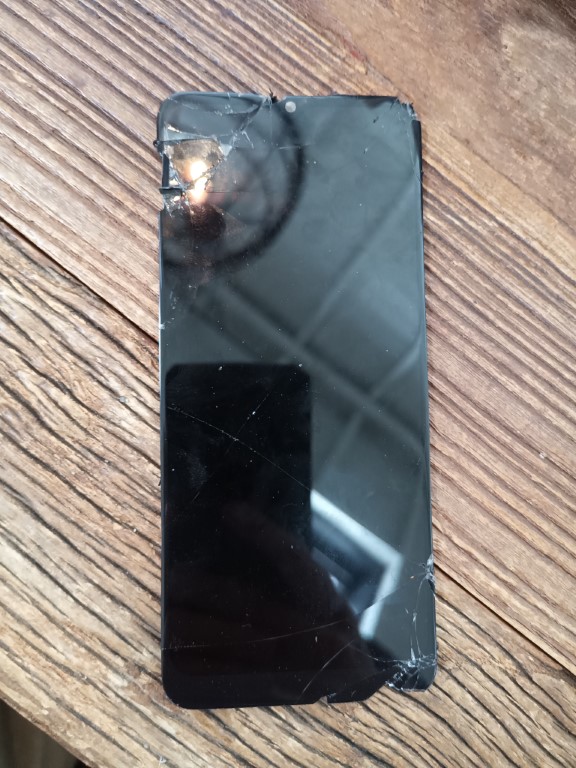

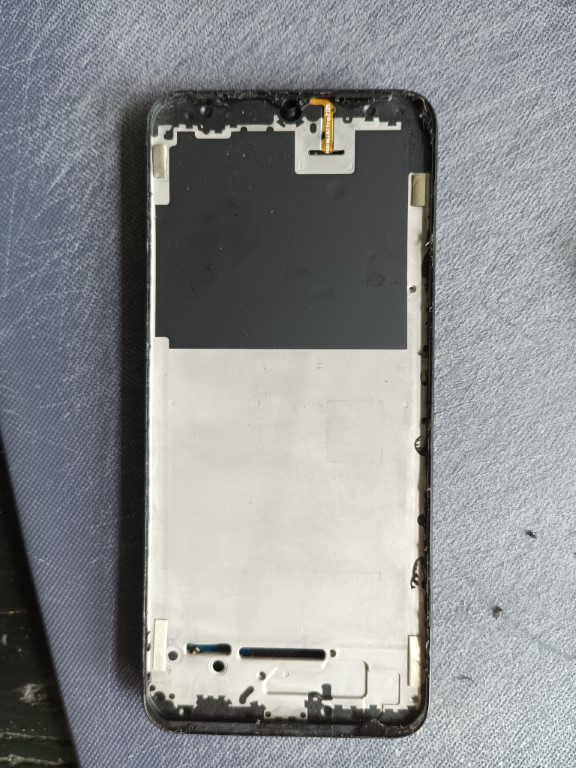

screen back screen front

The screen can be then reattached by using some T6000 glue. To make sure the screen stayed on properly I used the age old trick of putting something heavy on it.

drying

After it had dried, my mom had a nice brand new looking phone!

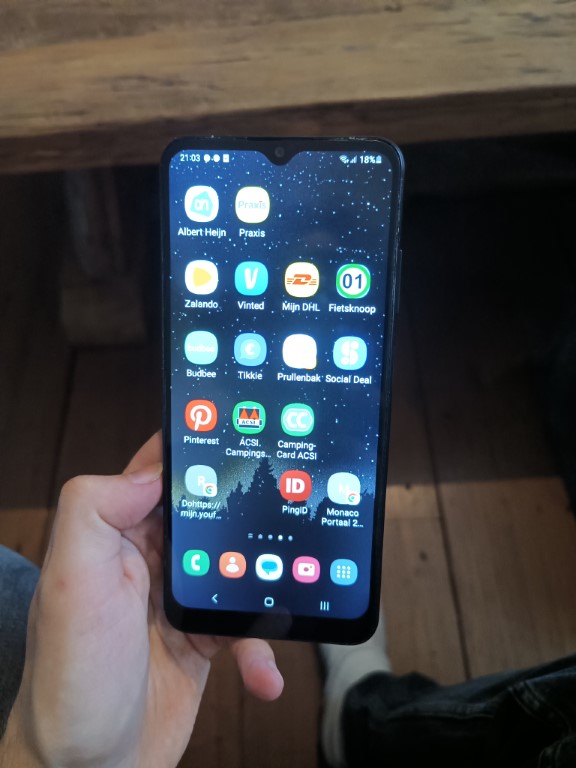

dried up fixed
